Ariel SV 600cc. 550 cc JP Piston +060. 1931-1958 87.9 mm

Manufacturer
JP
Article number
11327.060. pc4.
Price excl. VAT
€ 137,59
Variations

If you have a VAT Number or live in a country outside the EU and would like to see prices without VAT, please create an account.

Body

Ariel SV 600cc. 550 cc JP Piston +060. 1931-1958

STD=86.38. +060=87,9 mm

1931-1932 550 cc SV. SB21, SB32, SB31 Sloper

1932-1932 550 cc SV. VB, VB33 Vertical Engine

1933-1935 550 cc SV. VA, VA4

1936-1958 600 cc SV. VB

Gudgeon Pin diameter 13/16“ = 20.5 mm

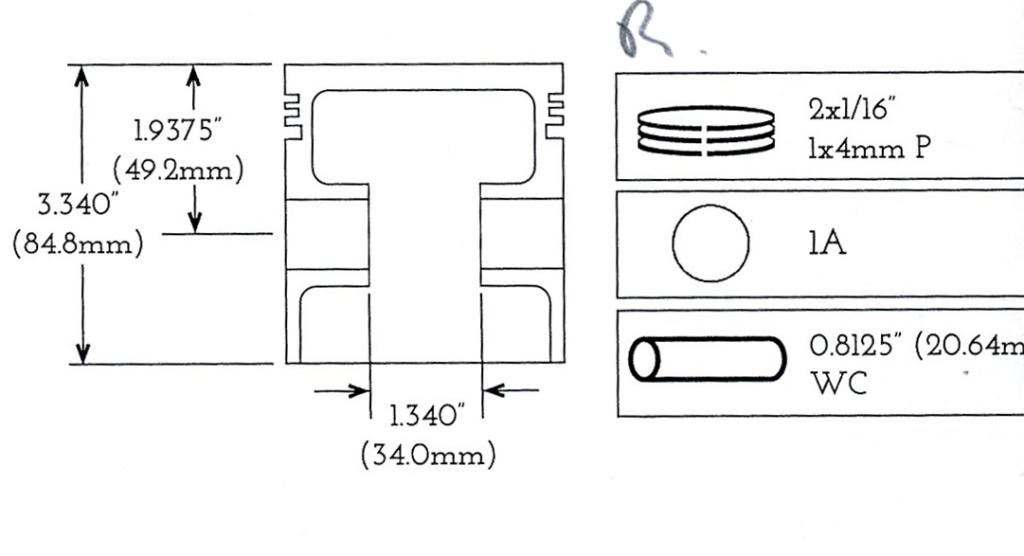

Measurements - please see last picture or techn. Data

Made in Australia

incl. Piston Rings, Gudgeon Pin and Circlips

Piston Clearance 0.12mm or 45thou

Pistons must be measured before the cylinder is bored, as cylinder bores are always precisely matched to the actual dimensions of the specific piston

(including the piston-to-cylinder clearance specified by the manufacturer).

Even new pistons from the same production batch can exhibit variations in size
